Filterdesign mit Matlab

Beispiel: Elliptisches Filter Lowpass 6. Ordnung 1dB Ripple, 60dB Stopband, Grenzfreq. 0.4 rad/sample

Realizemdl

% [B,A] = ELLIP(N,Rp,Rs,Wp)  coeff. in  length N+1 vectors B (numerator) and A (denom)
% zeros and poles are returned in length N column vectors Z and P,    and the gain in scalar K.
[z,p,k] = ellip(6,1,60,.4,'low');   % Obtain filter coefficients
[s,g] = zp2sos(z,p,k);        % Convert to SOS second order sections
Hd = dfilt.df2sos(s,g)

realizemdl(Hd)    % Requires Simulink

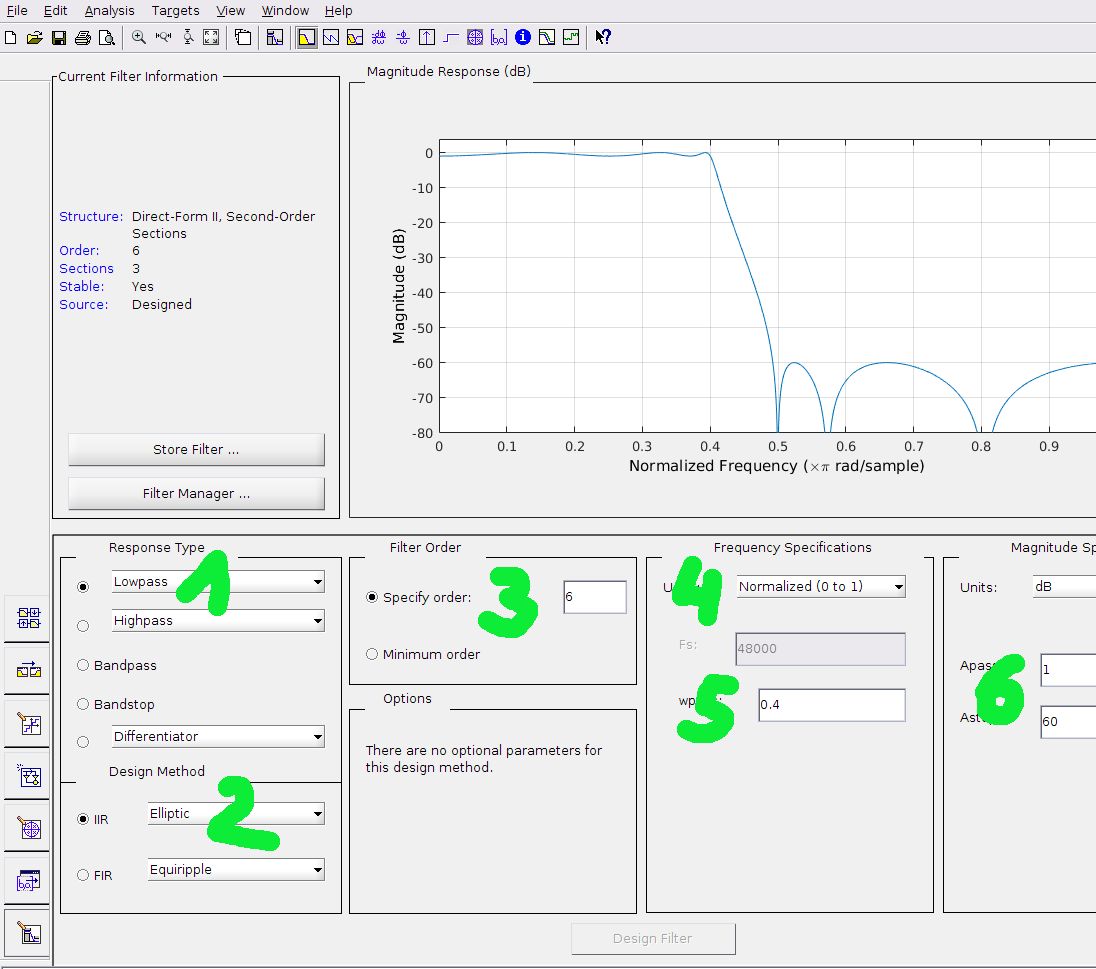

fdatool (Filter Design and Analyses Tool)

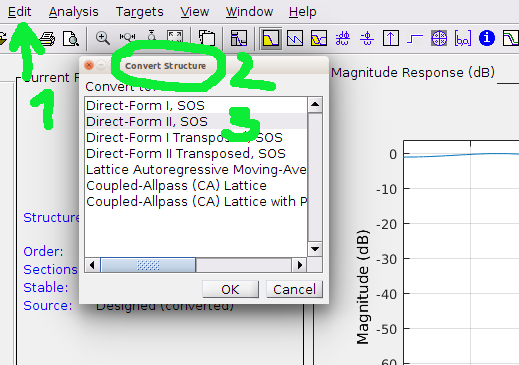

Change Structure

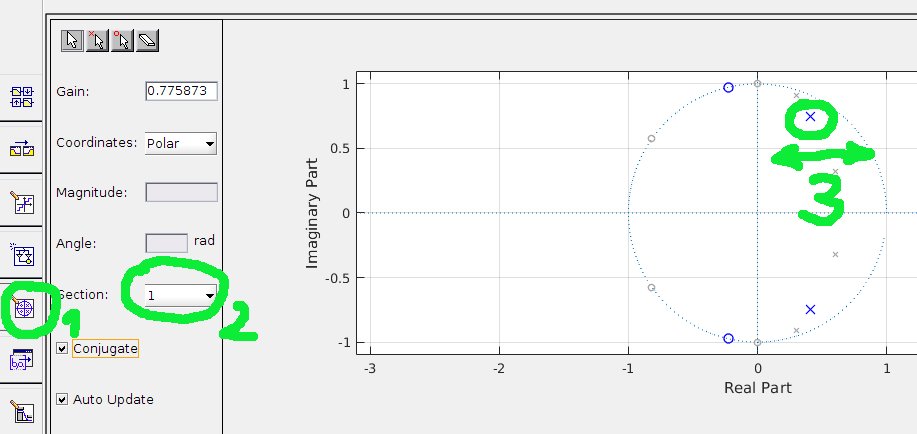

Zero Pole Diagram with moveable Poles and Zeros

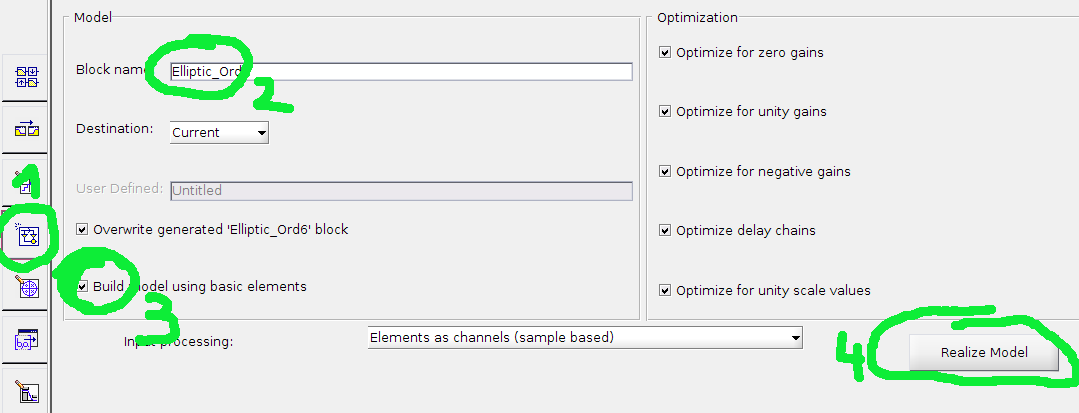

Realize Model

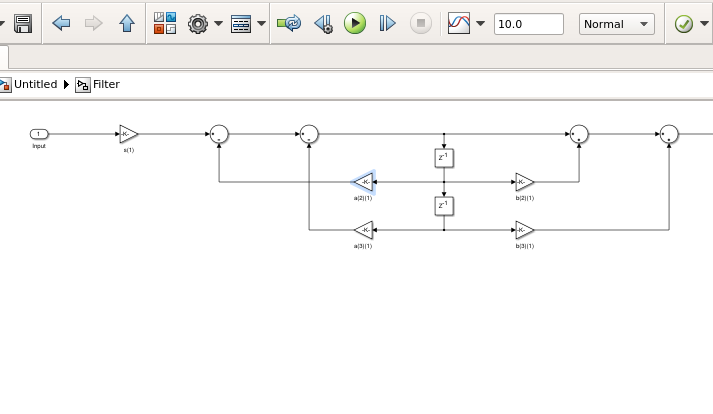

Control Structure in Simulink by double clicking the block symbol.
