1 Matlab und Arduino

Beispiel auf:

http://www.mathworks.com/help/releases/R2015b/supportpkg/arduino/examples/getting-started-with-arduino-hardware.html



  • menu://Add-Ons/Get Hardware Support Package/m
    oder Manuell mit den Blöcken aus der Bibliothek
    „Simulink Support Package for Arduino Hardware“

  • >arduinomega2560_gettingstarted  … in Matlab eintippen

  • auf Pin 13 umstellen

  • menu://tools/run on target hardware/options

    • Board auswählen

    • unter Linux comport manuell /dev/ttyACM0

    • Serial Port Properties → baud rate 115200

  • menu://Deploy to Hardware

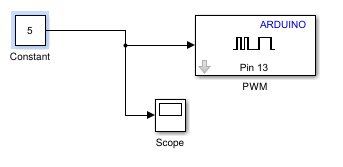

Bild1Bild2

2  DSP and Arduino

2.1 DSP Library for Arduino

http://wiki.openmusiclabs.com/wiki/ArduinoFFT   FFT Arduino Lib





2.2 Cortex Microcontroller Software Interface Standard (CMSIS)

CMSIS-DSP library http://www.keil.com/pack/doc/CMSIS/DSP/html/index.html; set up CMSIS for Arduino http://forum.arduino.cc/index.php?PHPSESSID=t46sbolt2km849unr8jgfmjdc1&topic=140107.0



Atmel CMSIS Intro http://www.atmel.com/Images/Atmel-42144-SAM4E-FPU-and-CMSIS-DSP-Library_AP-Note_AT03157.pdf

Download at http://asf.atmel.com/docs/latest/uc3a/html/group__group__dsplib.html
