Keyboard

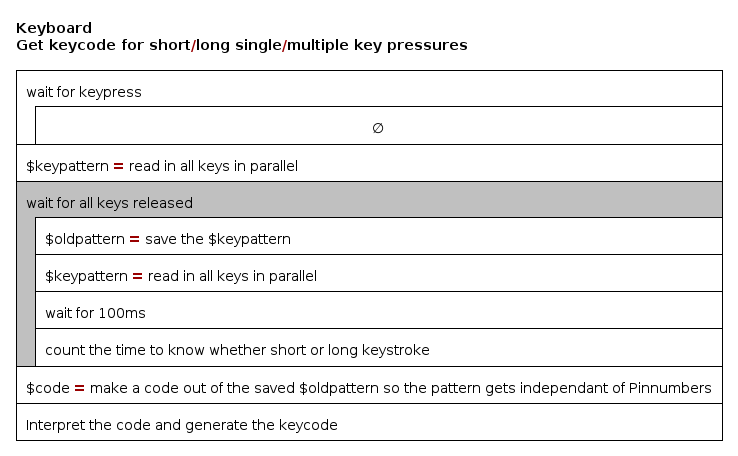

Read in the keyboard

== main.cpp ==

#include <Arduino.h>
#include "keyboard.h"
#undef DEBUG

keycodes_t key1 = keycode_invalide;

void setup()
{
	activatePullups();
	Serial.begin(9600);
}

void loop()
{
   key1 = readKeys(); //blockiert!
   uint8_t x=(int)key1;
   Serial.print(x,HEX);

}

== keyboard.h ==

#ifndef KEYBOARD_H_
#define KEYBOARD_H_

//Keys on PORTX/PINX
#define PINX PIND
#define PORTX PORTD
#define VOL_DN 0
#define VOL_UP 1
#define CH_DN 4
#define CH_UP 7

#ifdef DEBUG
#define DEBOUNCETIME 2
#define LONGKEYPRESSURE_MINIMALTIME 5
#else
#define DEBOUNCETIME 25
#define LONGKEYPRESSURE_MINIMALTIME 15
#endif

enum keycodes_t{
	keycode_invalide,
	keycode_vol_up,keycode_vol_dn,
	keycode_ch_up,	keycode_ch_dn,
	keycode_vol_up_long,keycode_vol_dn_long,
	keycode_ch_up_long,	keycode_ch_dn_long, keycode_mute,
	keycode_ch_search, keycode_ch_save, keycode_eeprom_clear, keycode_testmode
};


keycodes_t readKeys();
void activatePullups();

#endif /* KEYBOARD_H_ */

== keyboard.cpp ==

#include <Arduino.h>
#include "keyboard.h"

void activatePullups(){
	PORTX |= (1<<VOL_UP|1<<VOL_DN|1<<CH_UP|1<<CH_DN);
}

enum keycodes_t readKeys(){

	uint8_t mask = 1<<VOL_UP|1<<VOL_DN|1<<CH_UP|1<<CH_DN;
	while ((PINX & mask) == mask){} //wait for key pressure
	delay(DEBOUNCETIME); //debounce time
…

Analog Keyboard

Jede Taste erzeugt an einem Spannungsteiler eine eigene Spannung. Über einen Analogeingang werden die Spannungen ausgewertet. Mehrfachtastendrücke möglich (aber nicht getestet)


//short Keystrokes = Keycode 1,2,3
//long Keystrokes = 11, 12, 13
//very long Keystrokes = 101, 102, 103

uint8_t waitForKey() {
	int keyTime = 0;
    TRACE ("waitForKey")
    int newSensorValue = 0;
    DELAY (20); //let the adc recreate

    while (sensorValue == 0) {
        sensorValue = analogRead (analogInPin);
        DELAY (50) //debounce
    }

    //delay(50);  //let the adc settle
    sensorValue = analogRead (analogInPin);
    DELAY (300);
    newSensorValue = analogRead (analogInPin);

    while ( (newSensorValue / 100 == sensorValue / 100) && (sensorValue != 0) ) { // div by 100 to reduce sensibility
        DELAY (300)
        keyTime++;
        newSensorValue = analogRead (analogInPin);
		if (keyTime >= 2){
			Radio.mute();  //feedback to user for  long key pressure
			delay(50);
			Radio.unMute();
		}
		if (keyTime > 6){
			Radio.mute();  //feedback to user for very long key pressure
			delay(500);
			Radio.unMute();
		}
	}

    int keyValue = map (sensorValue, 0, 1023, 0, 5);

    if (keyTime >= 2 && keyTime <= 6)
	 { keyValue += 10;

	 }
    else if (keyTime > 6)
	{ keyValue += 100;

	}

    sensorValue = 0;

    return keyValue;
}
